TECHNICAL SPECIFICATION

Grandeur
Facet

BRAND: GRANDEUR

MODEL: GRANDEUR FACET

CALIBER: AUTOMATIC CALIBER

MATERIAL: TITANIUM

ORIGIN: DESIGNED IN USA

An uncompromising exploration of mechanical architecture. The Grandeur Facet strips away the superfluous to reveal the raw engineering beneath.

W: 40.0mm
L2L: 46.0mm

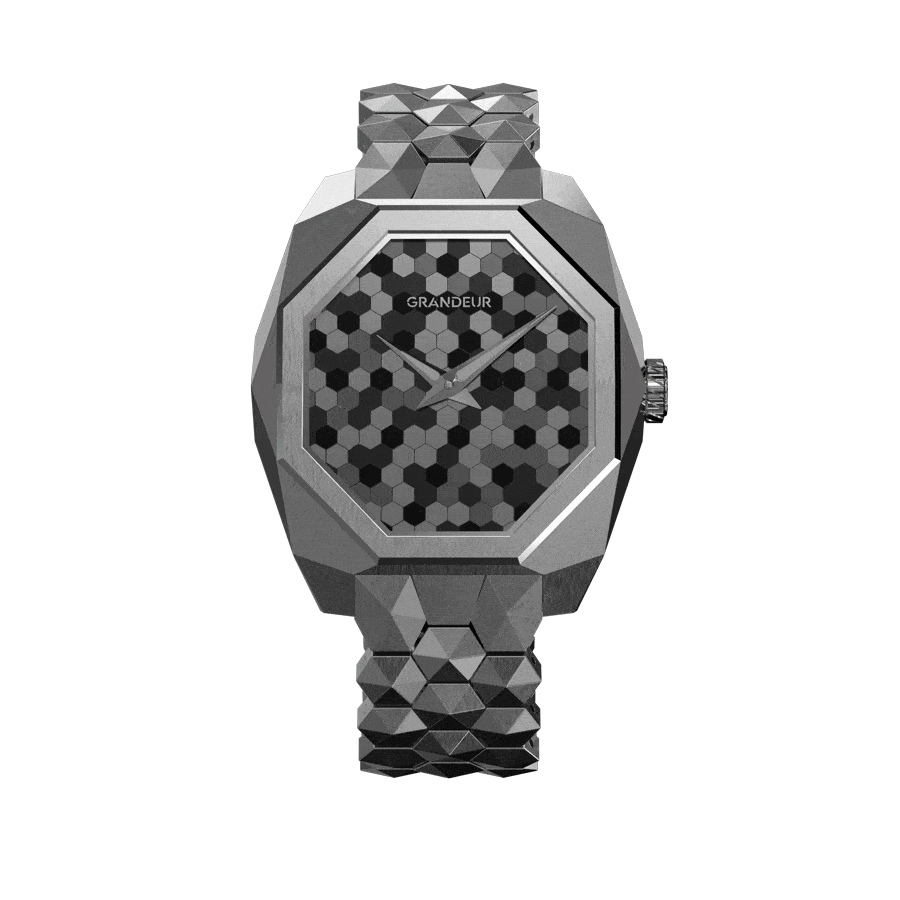

FIG. 1 — FRONT ELEVATION Grandeur Facet — front elevation, octagonal titanium case, 40mm × 46mm, AUTOMATIC CALIBER
Scroll to Examine
I.

The Dial: Dynamic Hexagon

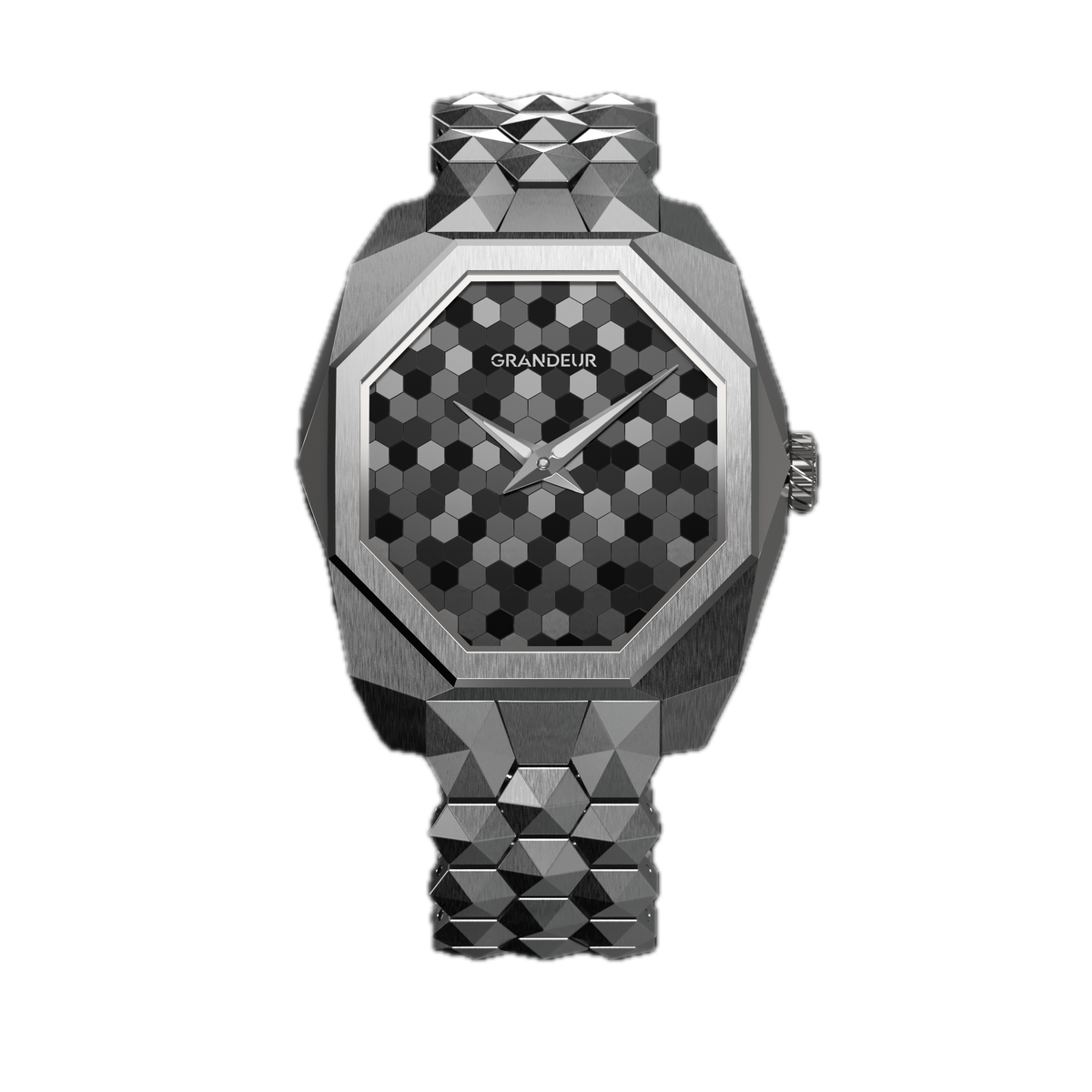

Grandeur Facet — 1A · DYNAMIC HEXAGON DIAL · INDEX-FREE
FIG. 1A — DYNAMIC HEXAGON DIAL · INDEX-FREE

A dial composed entirely of dynamic hexagons. Each tiny cell is set independently across the surface, shifting through gradients of light and dark as the wrist moves — a living, kinetic surface that's never the same twice.

SHAPE

Dynamic hexagon, index-free

DIAL TEXTURE

Hand-set faceted hexagons

HANDS

Dauphine, luminous-filled

MONOGRAM

Applied Grandeur signature

FRONT CRYSTAL

Anti-reflective sapphire

CASEBACK

Sapphire exhibition back

2-YEAR LIMITED WARRANTY

SERVICE CENTER: HOUSTON, TX USA

II.

Architecture: Octagonal Case

CHASSIS SPECIFICATIONS

  • SHAPE OCTAGONAL BEZEL
  • DIMENSIONS 40MM W × 46MM L
  • LUG-TO-LUG 46MM
  • THICKNESS 9.2MM
  • MATERIAL TITANIUM
  • FINISH BRUSHED
  • WEIGHT 69G W/ BRACELET
  • WATER RESIST. 5 ATM / 50M

The octagonal silhouette redefines wrist presence. At just 40mm × 46mm and 9.2mm thin, it sits flush against the wrist — substantial enough to command attention, refined enough to disappear under a cuff.

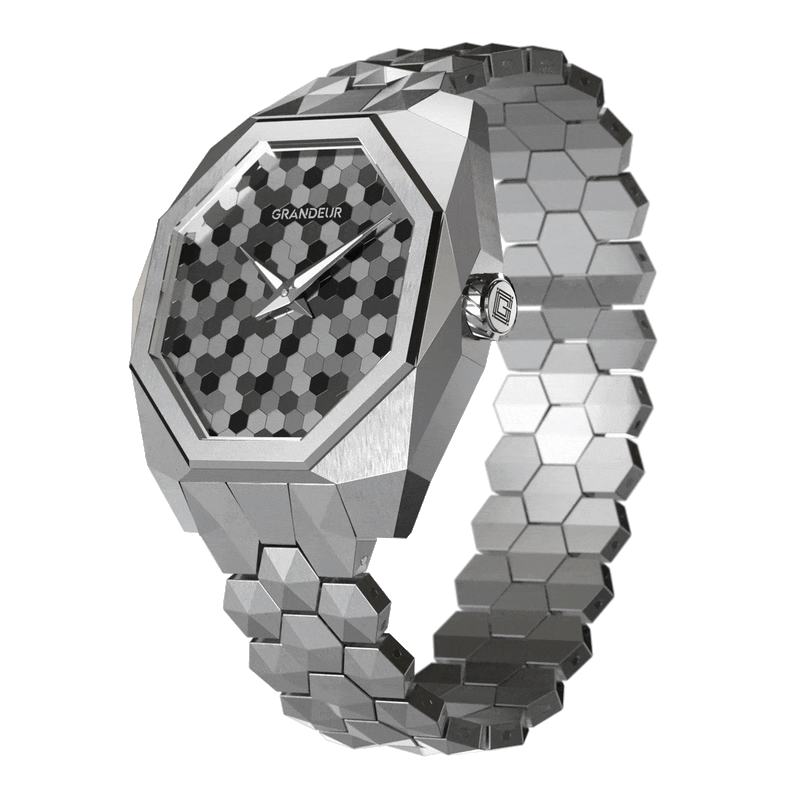

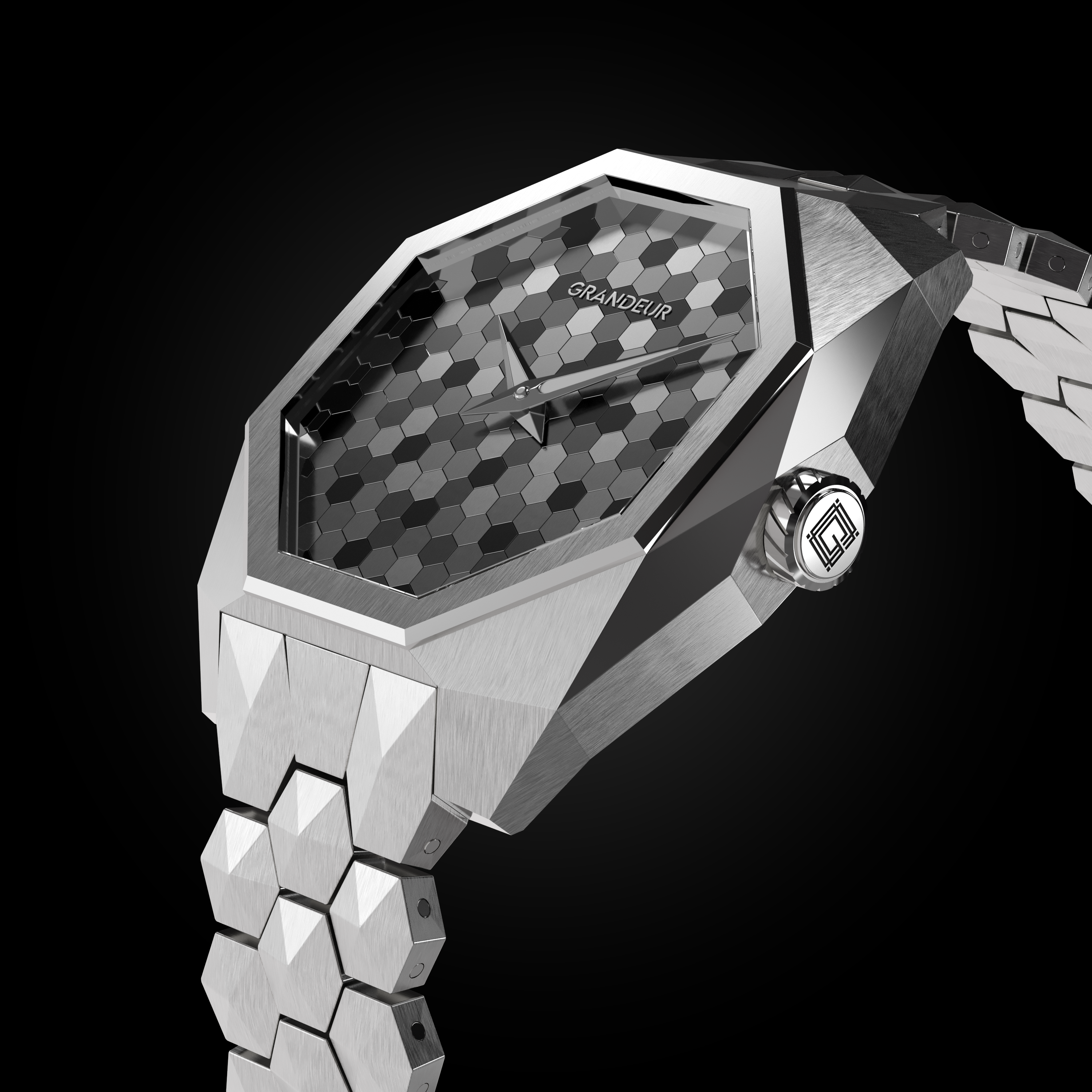

Grandeur Facet — 2A · OCTAGONAL ARCHITECTURE
FIG. 2A — OCTAGONAL ARCHITECTURE

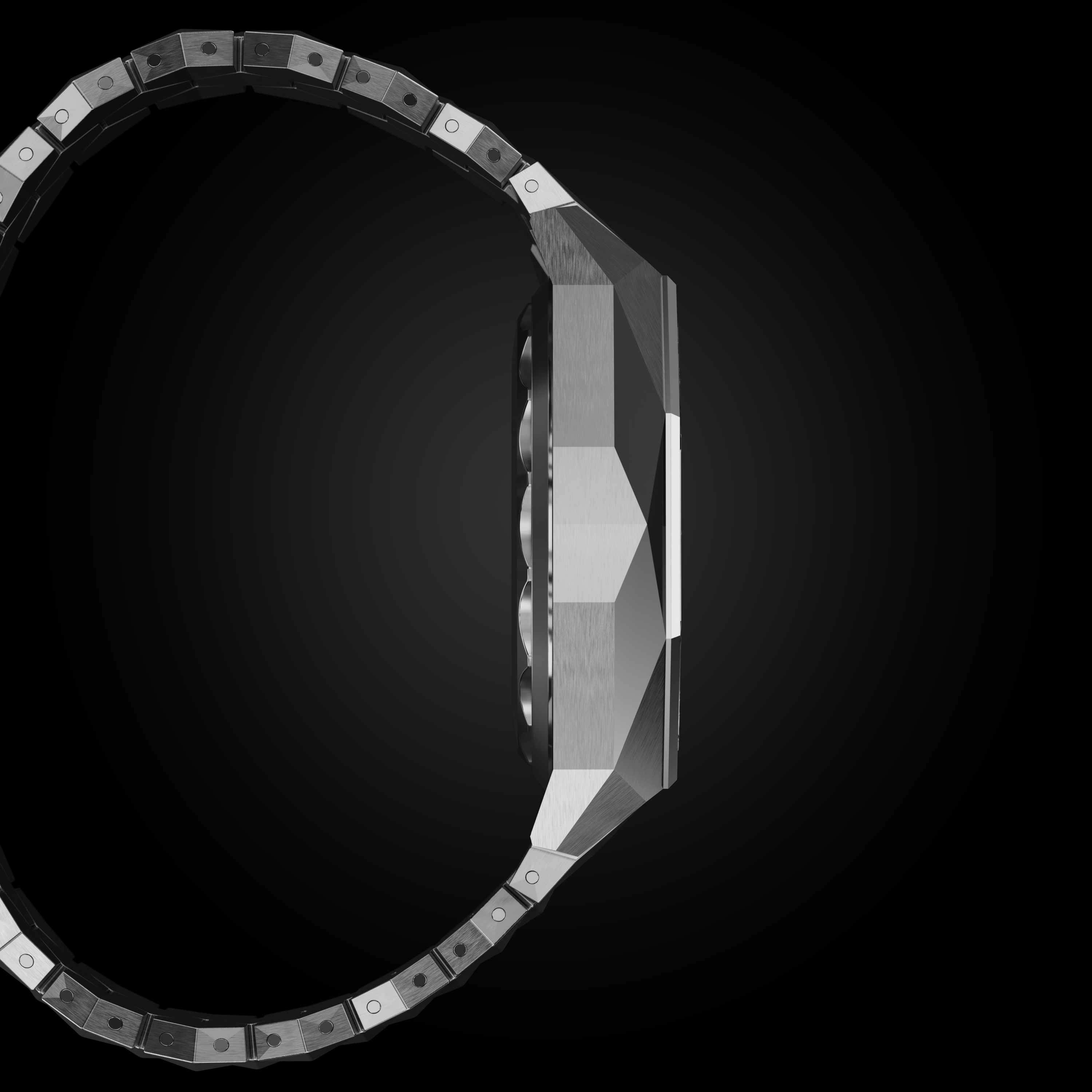

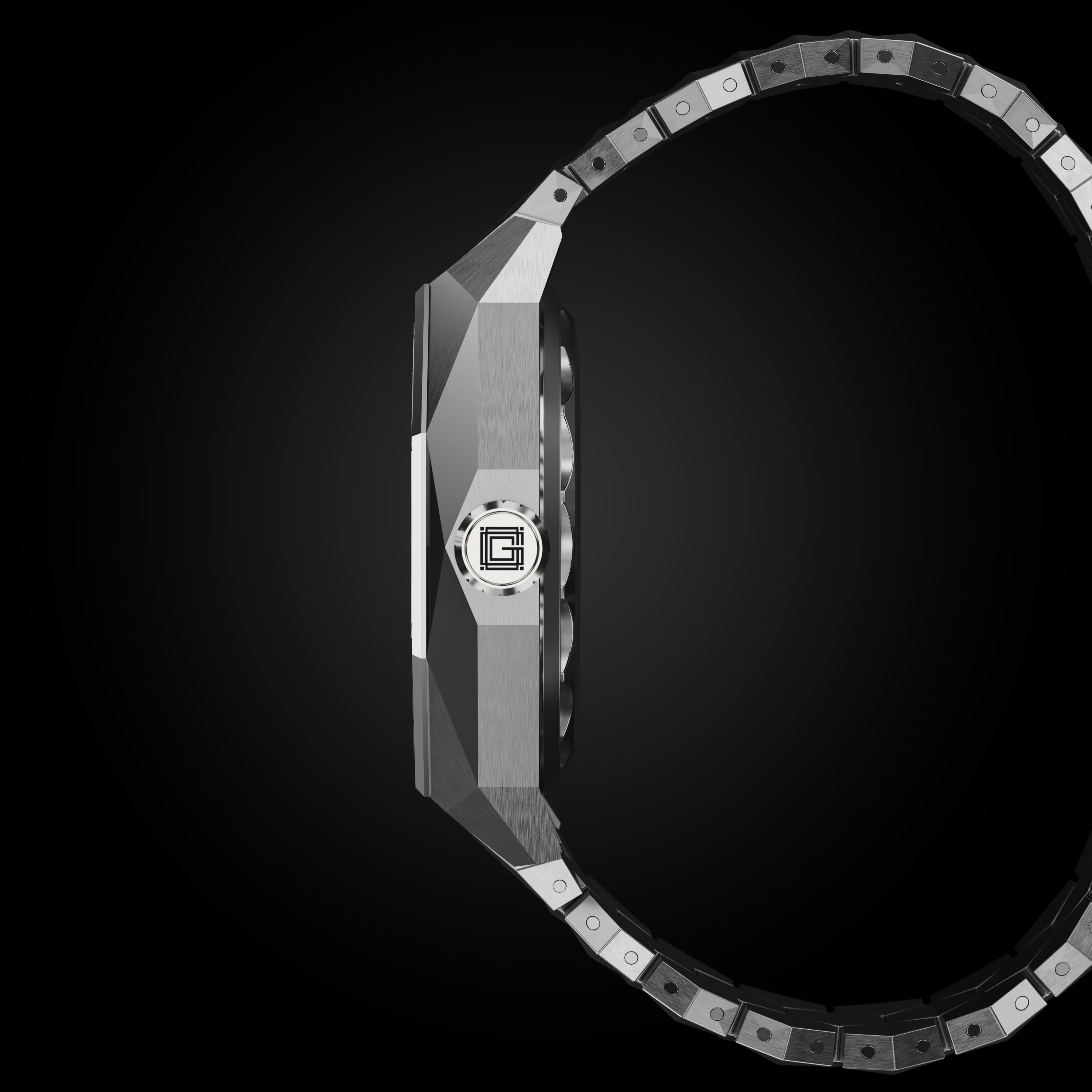

Grandeur Facet — 2B · 9.2MM THICKNESS
FIG. 2B — 9.2MM THICKNESS
III.

The Engine: Caliber & Profile

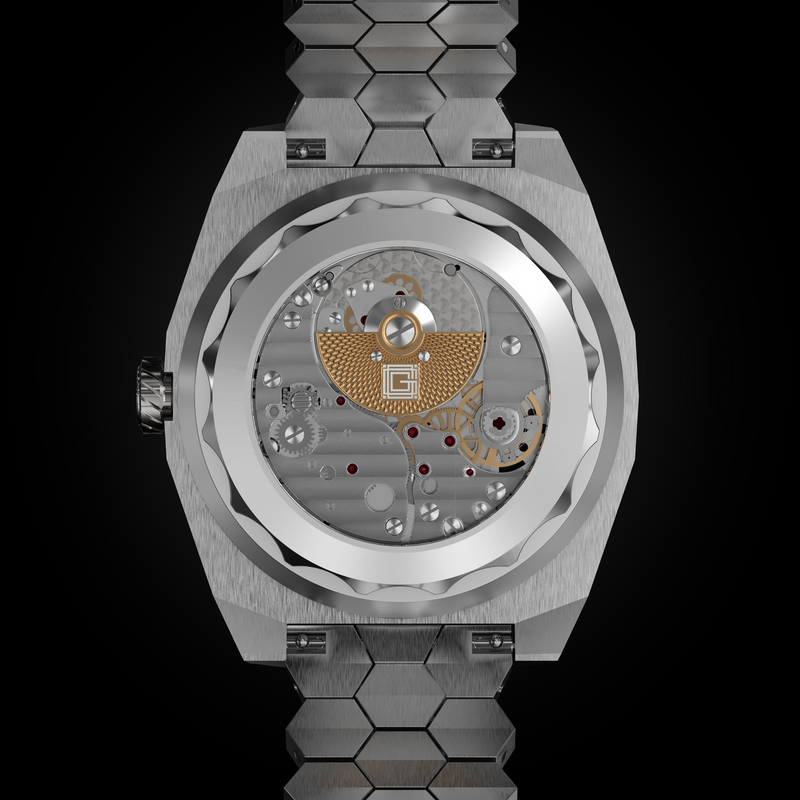

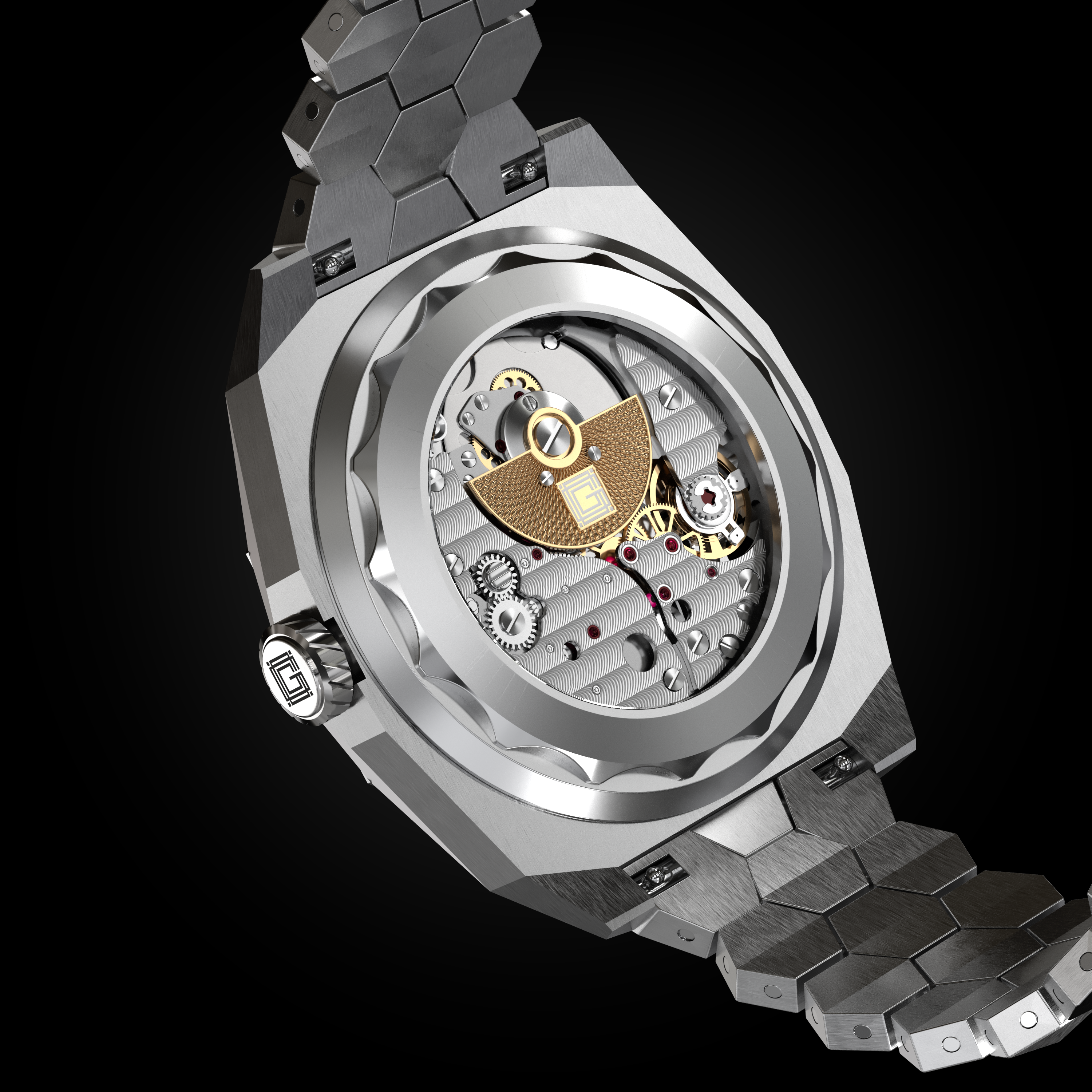

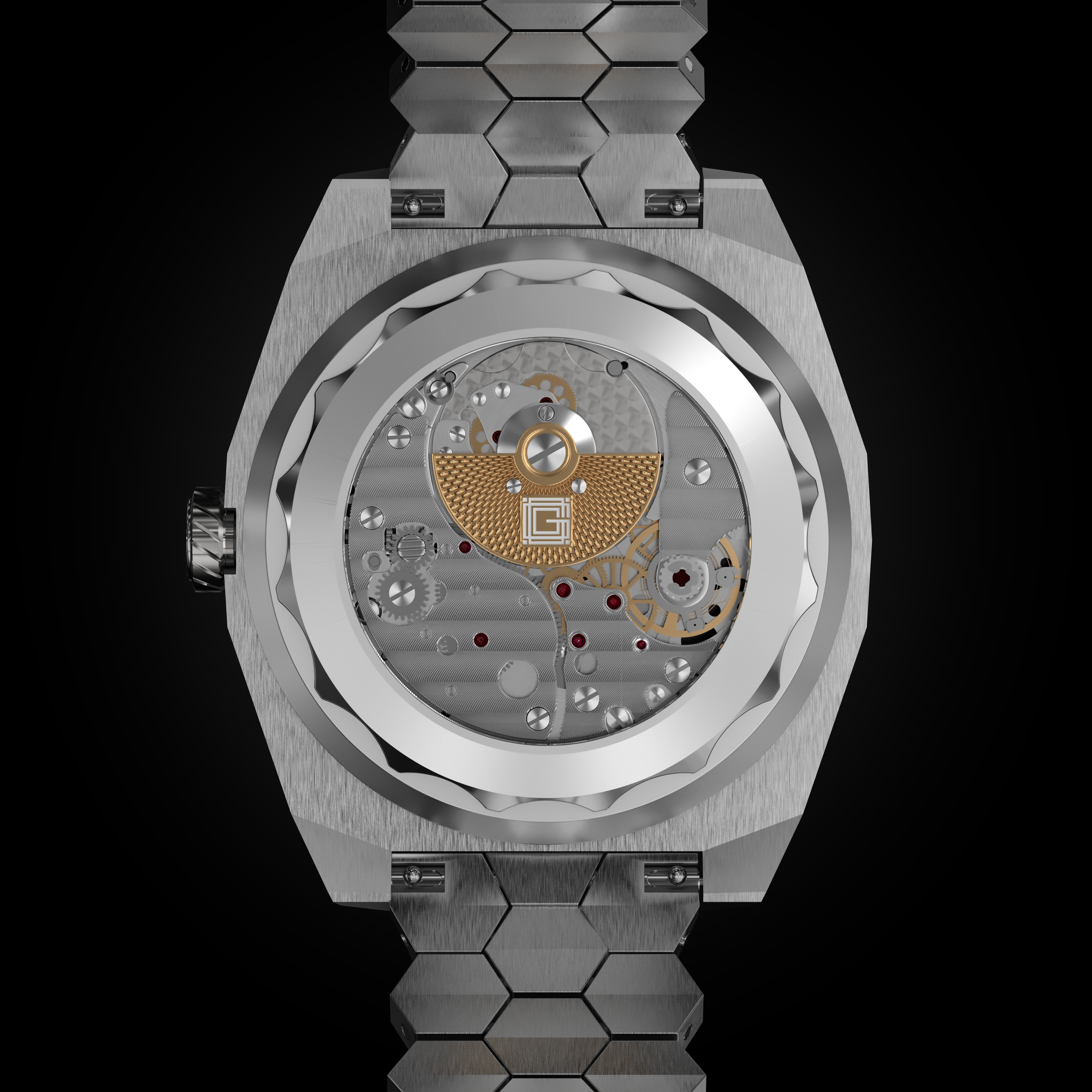

Grandeur Facet — 3A · EXHIBITION CASEBACK · SAPPHIRE CRYSTAL
FIG. 3A — EXHIBITION CASEBACK · SAPPHIRE CRYSTAL

EXHIBITION CASEBACK

At the heart of the Facet beats an exclusive 3.9mm automatic caliber — a micro-rotor architecture with hacking seconds and quick-set date. Every oscillation of the balance wheel is visible through the sapphire exhibition caseback.

Grandeur Facet — 3B · SCULPTED PROFILE
FIG. 3B — SCULPTED PROFILE
0mm
MOVEMENT THICKNESS
0
JEWELS
0hr
POWER RESERVE
0Hz
FREQUENCY

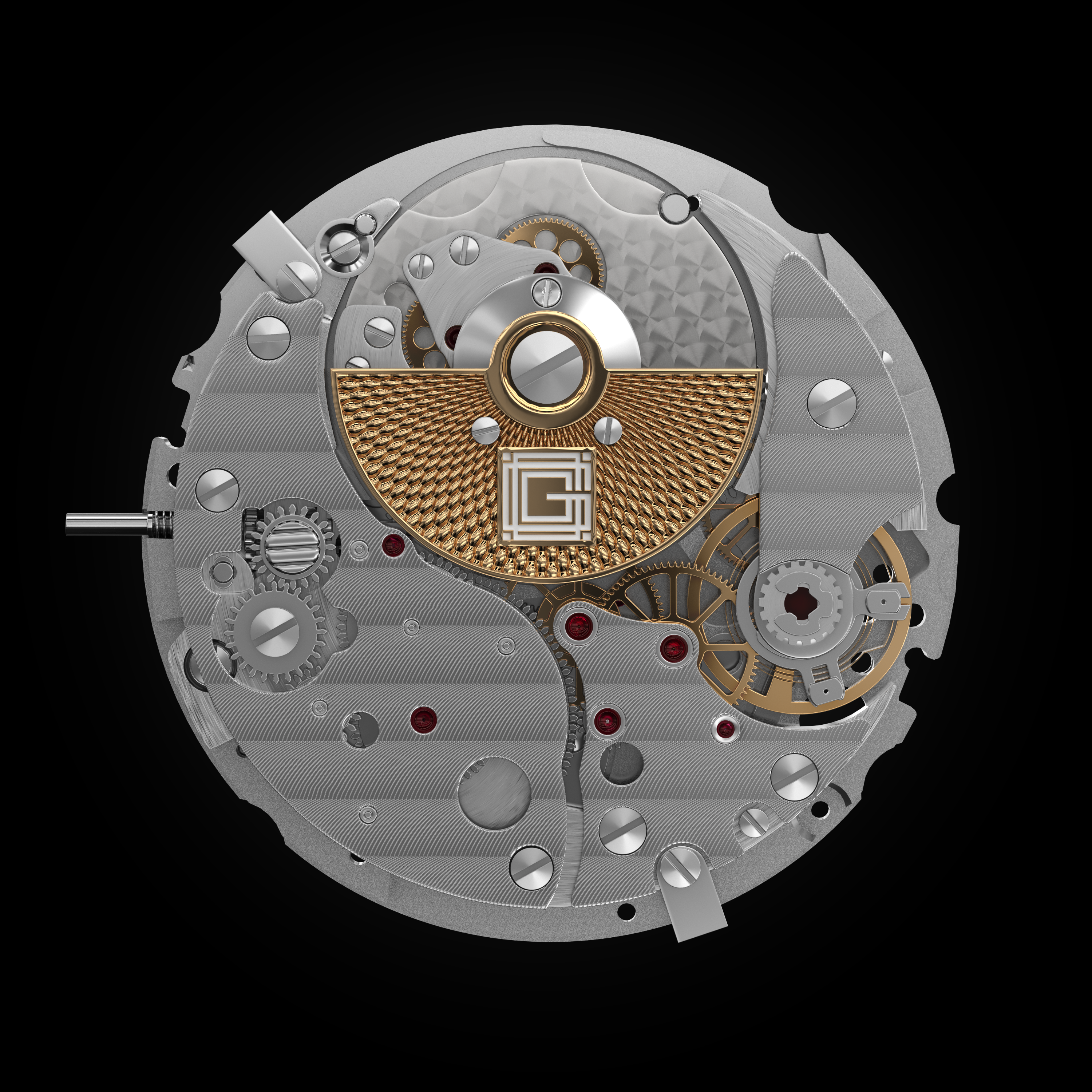

Grandeur Facet — 3C · EXCLUSIVE CALIBER · 24 JEWELS · 28,800 VPH
FIG. 3C — EXCLUSIVE CALIBER · 24 JEWELS · 28,800 VPH

CALIBER SPECIFICATIONS

  • TYPE AUTOMATIC, MICRO ROTOR
  • DIAMETER 28MM
  • THICKNESS 3.9MM
  • JEWELS 24
  • FREQUENCY 28,800 VPH (4 HZ)
  • POWER RESERVE 42 HOURS
  • FUNCTIONS HOURS · MINUTES · SECONDS · DATE

A purpose-built automatic engineered to demanding tolerances — micro-rotor architecture with hacking seconds, quick-set date, and bi-directional winding, slimmed to a 3.9mm profile for this edition.

01
BARREL
Mainspring power source
02
GEARS
Power transmission train
03
RUBY
Synthetic pivot jeweling
04
BALANCE WHEEL
Timekeeping oscillator
05
CÔTES DE GENÈVE
Parallel decorative striping on bridges
06
PLATINE
Main movement plate
2-YEAR LIMITED WARRANTY

SERVICE CENTER: HOUSTON, TX USA

AUTOMATIC CALIBER • 3.9MM MOVEMENT • 24 JEWELS • 42-HR POWER RESERVE • 4 Hz FREQUENCY • MICRO ROTOR • HACKING SECONDS • QUICK-SET DATE • AUTOMATIC CALIBER • 3.9MM MOVEMENT • 24 JEWELS • 42-HR POWER RESERVE • 4 Hz FREQUENCY • MICRO ROTOR • HACKING SECONDS • QUICK-SET DATE •
IV.

Lume: After Dark

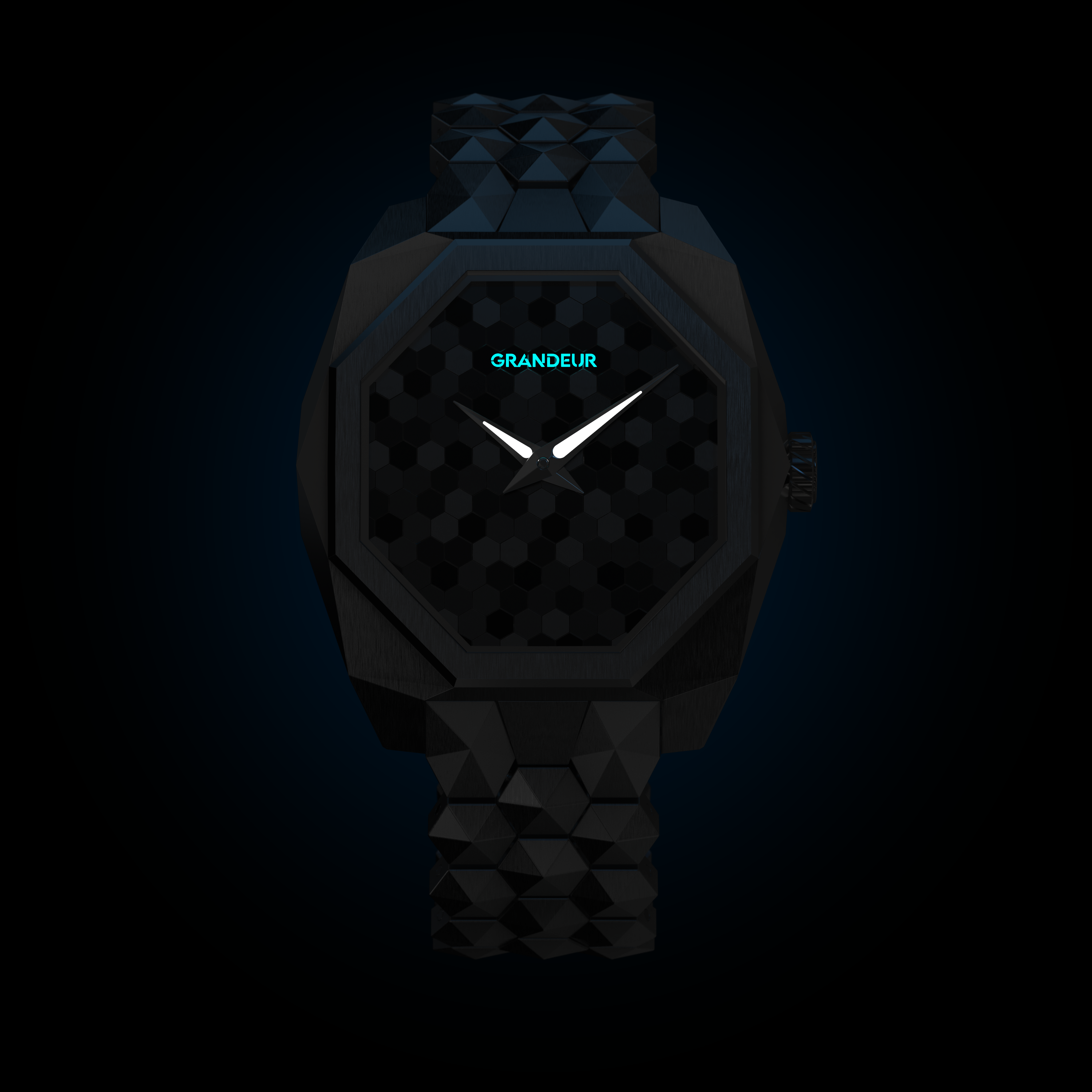

Grandeur Facet — Watch dial illuminated by Super-LumiNova in the dark
FIG. 4A — LUME EXPOSURE · 0 LUX
SUPER-LUMINOVA® GRADE A · BC3

When the lights go down, the dial comes alive. Hand-applied Super-LumiNova® charges in seconds and emits a steady cyan glow for hours — illuminating the Dauphine hands and the Grandeur monogram with surgical clarity.

1
DAUPHINE HANDS

Classic faceted Dauphine hour and minute hands with lume-filled channels for instant low-light readability.

2
LUMED MONOGRAM

The Grandeur monogram at 12 o'clock charges with the dial and remains legible long after the lights drop.

3
EMISSION

Steady cyan glow sustains 4–6 hours after a 30-minute charge under direct light.

30s
CHARGE TIME
6hr
EMISSION
BC3
GRADE
100%
HAND-APPLIED
SUPER-LUMINOVA® · 4–6 HR EMISSION · CYAN BC3 · CHARGES IN 30 SECONDS · HAND-APPLIED · SUPER-LUMINOVA® · 4–6 HR EMISSION · CYAN BC3 · CHARGES IN 30 SECONDS · HAND-APPLIED
V.

Integration: Faceted Bracelet

The integrated faceted bracelet flows seamlessly from the case lugs. Hexagonal links are individually hand-brushed to catch light dynamically with every wrist movement.

1

LINK DESIGN

Faceted hexagonal geometry for maximum articulation

2

FINISHING

Hand-brushed top surfaces with polished bevels

3

HIDDEN CLASP

A concealed clasp provides a secure, flush fit against the wrist

4

SCREW-IN LINKS

The bracelet links connect using screws, enabling quick and easy resizing

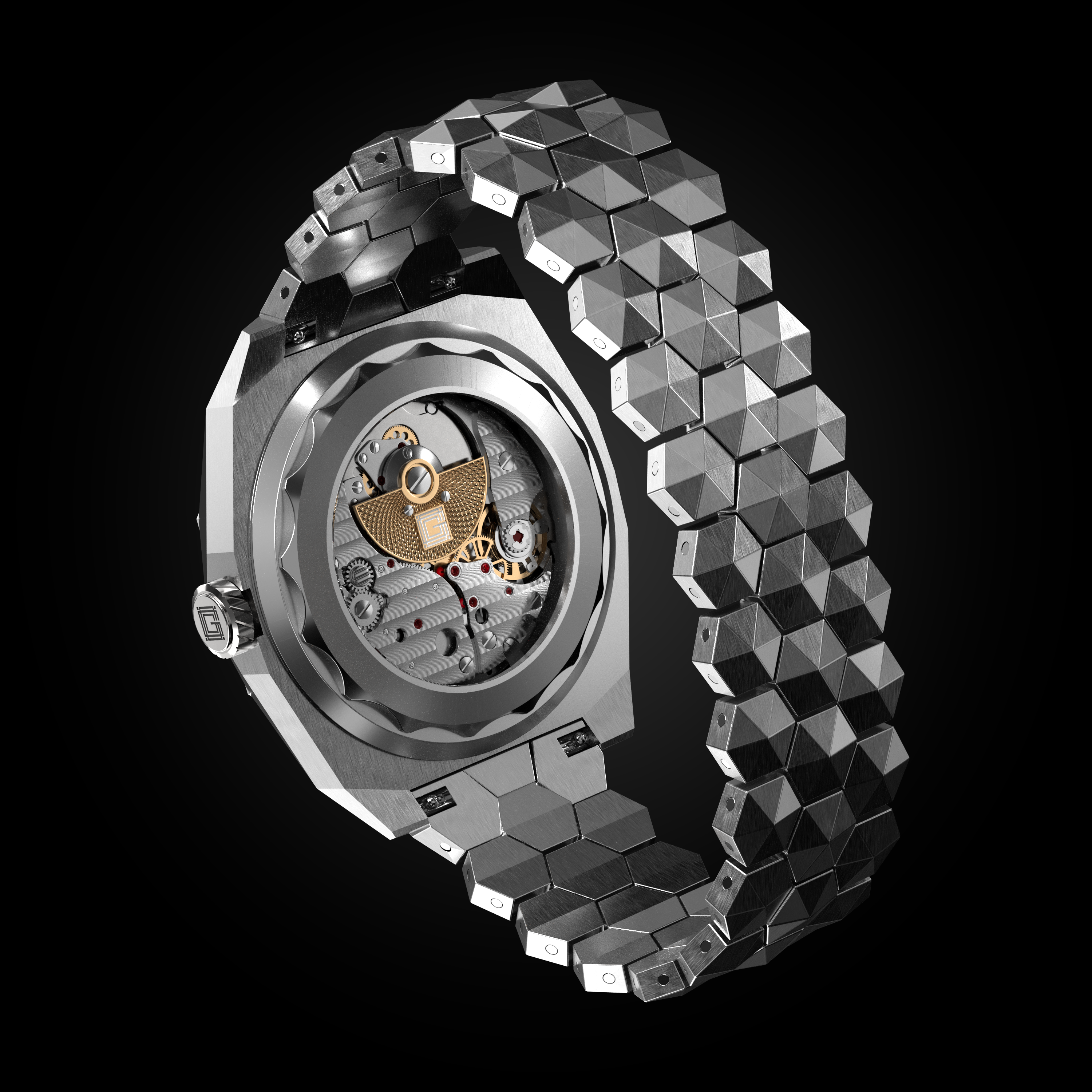

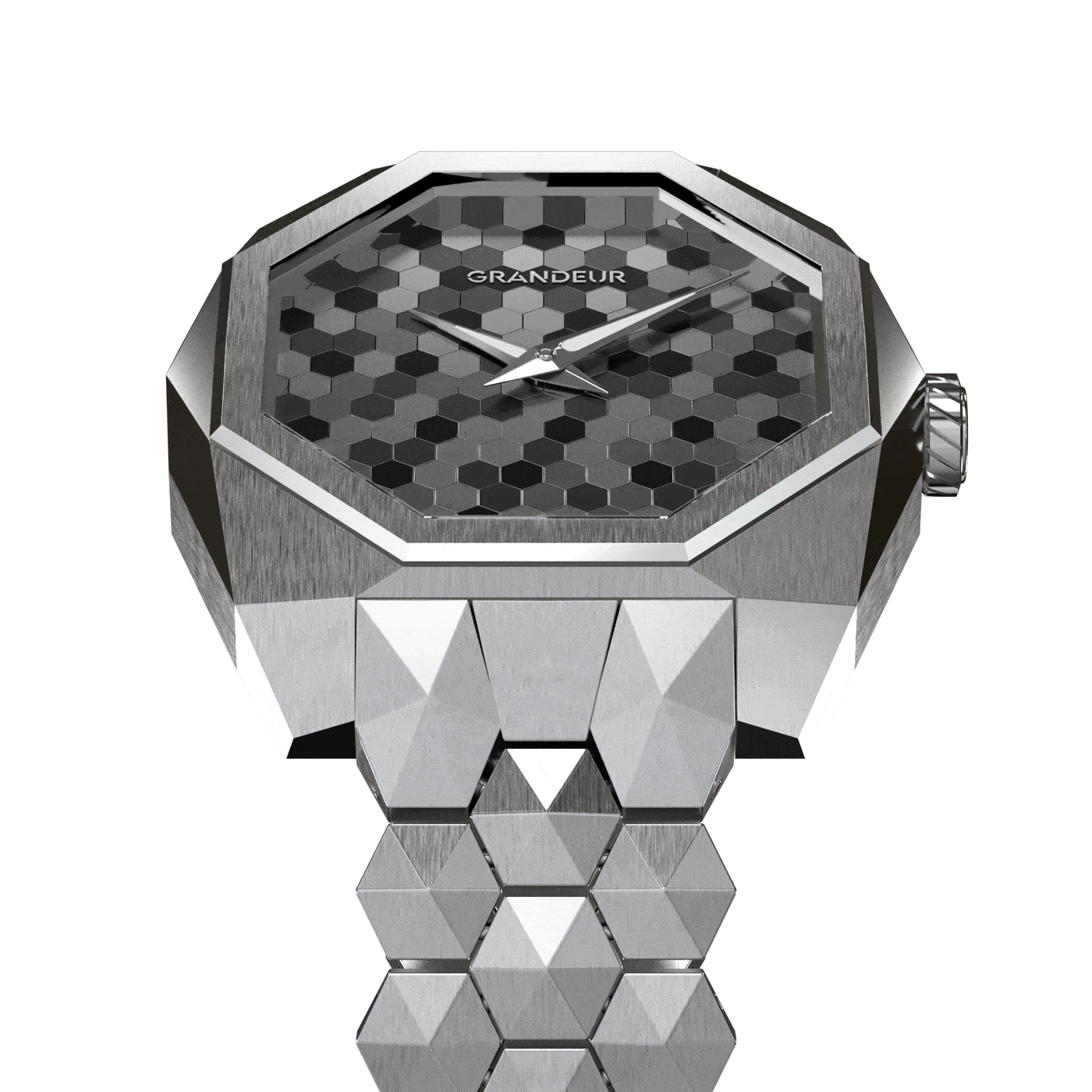

Grandeur Facet — 5A · LINK ARTICULATION
FIG. 5A — LINK ARTICULATION
Grandeur Facet — 5B · CASE INTEGRATION
FIG. 5B — CASE INTEGRATION

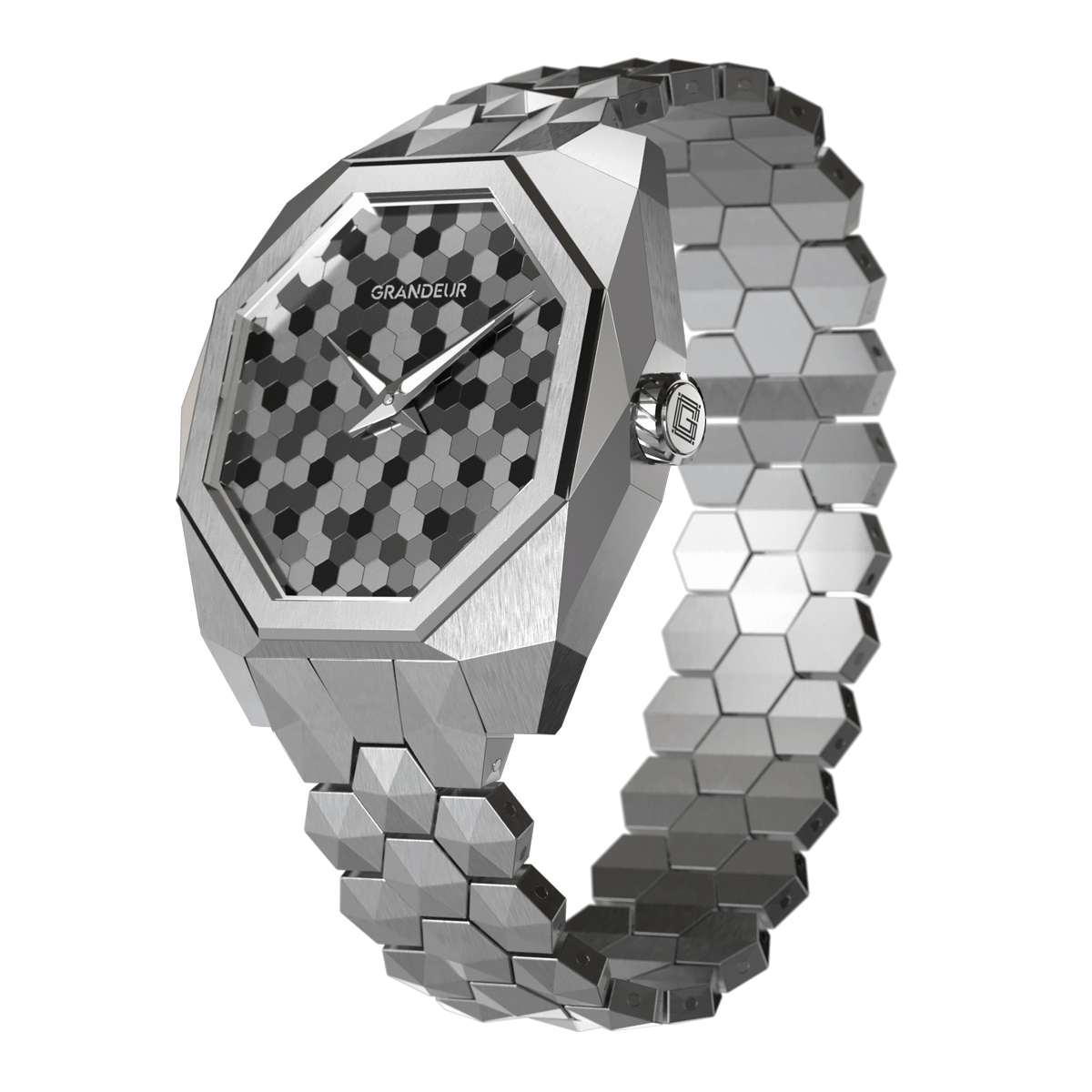

Grandeur Facet — 5C · HIDDEN CLASP MECHANISM · FLUSH-FIT DEPLOYMENT
FIG. 5C — HIDDEN CLASP MECHANISM · FLUSH-FIT DEPLOYMENT

BRACELET & CLASP SPECIFICATIONS

  • TYPE HIDDEN DEPLOYMENT
  • PROFILE FLUSH-FIT
  • LINKS SCREW-IN SYSTEM
  • CHANGE QUICK-RELEASE

Engineered for a seamless wrist experience — the hidden clasp sits flush, eliminating the bulk of traditional deployant mechanisms.
